YG
Wosen
| Availability: | |
|---|---|
| Quantity: | |
Product Introduction

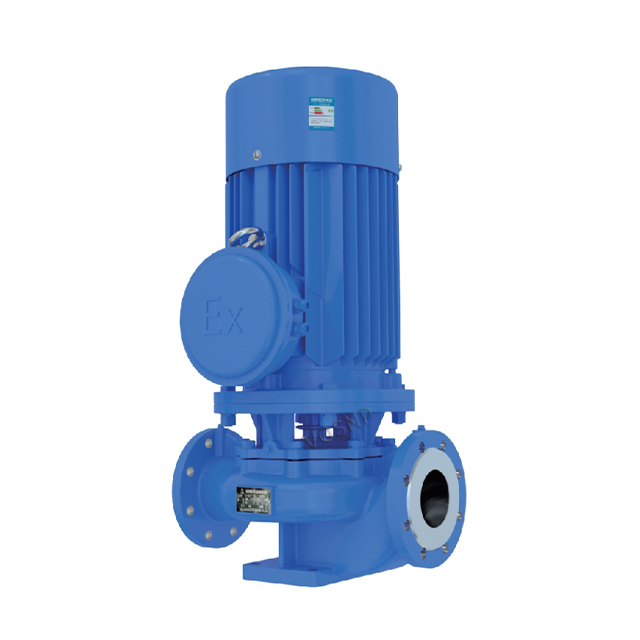

YG type vertical single-stage single suction explosion-proof centrifugal pump adopts the performance parameters of IS type centrifugal pump and is ingeniously designed on the basis of general vertical pumps. At the same time, suitable hot water, high temperature, and corrosive chemical pumps and oil pumps are dispatched based on the ISG type according to different operating temperatures, media, etc. This series of products has the advantages of high efficiency, energy saving, low noise, and reliable performance.
Product Features
The pump is a vertical structure with the same inlet and outlet diameters and located on the same centerline, which can be installed in the pipeline like a valve
The impeller is directly installed on the extended shaft of the motor, with a short axial dimension, compact and beautiful structure, small footprint, low construction investment, and can be used outdoors with a protective cover.
The reasonable configuration of pump and motor bearings can effectively balance the radial and axial loads generated by pump operation, thereby ensuring smooth pump operation, low vibration, and low noise.
The shaft seal adopts mechanical seal or mechanical seal combination, using titanium alloy sealing ring, medium high temperature resistant mechanical seal and hard alloy material, wear-resistant seal, which can effectively extend the service life.
Easy installation and maintenance, no need to disassemble the pipeline system, just remove the pump coupling nut to extract all rotor components.
Application Field
The temperature of the medium for transporting oil, kerosene, diesel, solvents, and edible oil is -20 ℃~120 ℃.
Widely used in industrial and mining enterprises such as oil depots, docks, ships, chemicals, textiles, and environmental protection.
Pumps used for high-temperature hot water pressurized circulation and transportation in industries such as metallurgy, chemical, textile, wood processing, papermaking, as well as in hotels, bathrooms, and guesthouses, and for urban housing heating circulation, with operating temperatures below 105 ℃.
Performance Parameter
| Number | Model | Flow (m³/h) | Lift (m) | Power (kW) | Speed (r/min) | Voltage (V) |
| 1 | YG20-110 | 2.5 | 15 | 0.75 | 2900 | 220 |
| 2 | YG20-160 | 2.5 | 32 | 0.75 | 2900 | 220/380 |
| 3 | YG25-110 | 4 | 15 | 0.75 | 2900 | 220/380 |
| 4 | YG25-125 | 4 | 20 | 0.75 | 2900 | 220/380 |
| 5 | YG25-125A | 3.6 | 16 | 0.75 | 2900 | 220/380 |
| 6 | YG25-160 | 4 | 32 | 1.5 | 2900 | 380 |
| 7 | YG25-160A | 3.7 | 28 | 1.1 | 2900 | 220/380 |
| 8 | YG32-100 | 4.5 | 12.5 | 0.75 | 2900 | 220/380 |
| 9 | YG32-100I | 6.3 | 12.5 | 0.75 | 2900 | 220/380 |
| 10 | YG32-125 | 5 | 20 | 0.75 | 2900 | 220/380 |
| 11 | YG32-125A | 4.5 | 16 | 0.75 | 2900 | 220/380 |
| 12 | YG32-160 | 6.5 | 32 | 1.5 | 2900 | 380 |
| 13 | YG32-160A | 4 | 25 | 1.1 | 2900 | 220/380 |
| 14 | YG32-160I | 6.3 | 32 | 2.2 | 2900 | 380 |
| 15 | YG32-200 | 4.5 | 50 | 3 | 2900 | 380 |
| 16 | YG32-200A | 4 | 44 | 2.2 | 2900 | 380 |
| 17 | YG32-200B | 3.5 | 38 | 1.5 | 2900 | 380 |
| 18 | YG32-200I | 6.3 | 50 | 4 | 2900 | 380 |
| 19 | YG32-200IA | 6.3 | 44 | 3 | 2900 | 380 |
| 20 | YG40-100 | 6.3 | 12.5 | 0.75 | 2900 | 220/380 |
