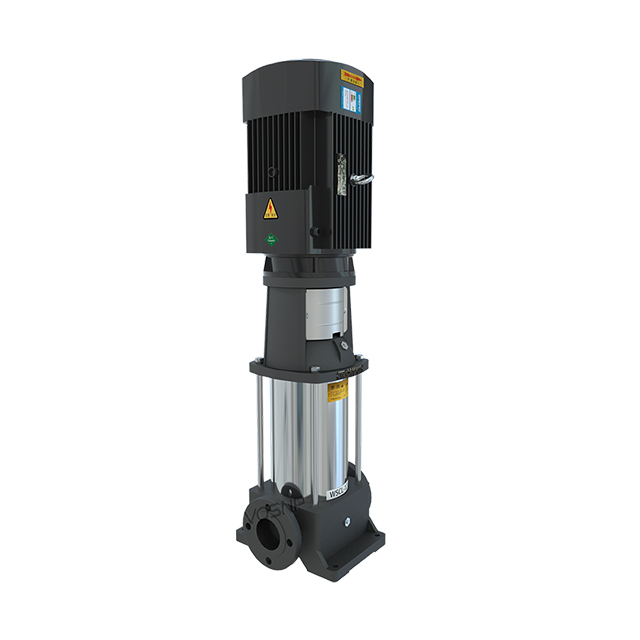

WSCL Vertical Stainless Steel Multistage Pump

Model:
WSCL
Brand:
Wosen

Quantity:
Availability:





Inquire Add to Basket

Parameter Description

Product Details

Flow Range

1~200m³/h

Range Of Head

1~300m

Power Range

0.18~160KW

Caliber Range

Φ15~Φ500mma

Product Introduction

WSCL Vertical Stainless Steel Multistage Pump is a non-self-priming vertical multi-stage centrifugal pump designed and manufactured by absorbing advanced technologies at home and abroad. Standard vertical motor and quick-mounted mechanical seal are adopted, which is very convenient for replacement. The pipeline centrifugal pump can replace similar products such as CR and CRN. With the characteristics of high efficiency, energy saving, reliable quality and wide application range, it is popular among users.

Product Features

Excellent hydraulic model and advanced manufacturing process are adopted to greatly improve pump performance and service life.
The end face of mechanical seal is made of alloy silicon carbide, and the auxiliary seal ring is made of fluorine rubber, which can improve the reliability of pump operation and the temperature of conveying medium.
The overflow part of the pump is made of stainless steel 304 and stainless steel 316 plates by punching and welding, making the pump applicable to slightly corrosive media.
The overall structure is compact, small in size, light in weight, low in noise, obvious in energy conservation and convenient for maintenance.
The water inlet and outlet of the pipeline centrifugal pump are on the same horizontal line as the pump base and can be directly used in the pipeline.
The standard motor is adopted, so the user can easily equip the motor according to the needs.

Application Field

WSCL vertical multi-stage centrifugal pump is applicable to boiler water supply, and can also be widely used in pressure vessel water supply, hot water circulation, high-rise building water supply and farmland irrigation, fire fighting pressurization, hydraulic flushing, food, brewing, medicine, chemical industry, aquaculture, environmental protection, chemical process flow and machine tool supporting industries, as the power equipment for water supply and drainage.

Performance Parameter

Model WSCL(F)1	Equipped with motor (kW)	Flow (m³/h)	0.4	0.6	0.8	1.0	1.2	1.4	1.6	1.8	2.0
WSCL1-2	0.37	Lift (m)	13	12.5	12	11.5	11	10.5	10	9.5	9
WSCL1-3	0.37		19	18	17.5	17	16.5	16	15	14	12
WSCL1-4	0.37		24	23.5	23	22.5	21.5	21	19	18	16
WSCL1-5	0.37		30	29.6	29	28	27	26	24	22	20
WSCL1-6	0.37		36	35.5	35	33.5	33	31	28	26	23
WSCL1-7	0.37		42	41	40.5	39	38	36	33	30	27
WSCL1-8	0.55		48	47	46	45	43	41	38	34	30
WSCL1-9	0.55		54	53	52	51	49	46	43	39	33
WSCL1-10	0.55		60	59	58	57	54	51	48	43	36
WSCL1-11	0.55		66	65	63	61	59	56	52	47	40
WSCL1-12	0.75		72	71	69	67	64	61	57	51	44
WSCL1-13	0.75		78	77	75	73	69	66	62	55	47
WSCL1-15	0.75		89	88	86	84	79	76	71	63	55
WSCL1-17	1.1		101	99	97	95	89	86	80	71	62
WSCL1-19	1.1		113	110	108	106	99	96	89	79	69
WSCL1-21	1.1		124	122	120	117	110	106	98	87	75
WSCL1-23	1.1		137	133	131	128	121	116	107	96	82
WSCL1-25	1.5		149	145	143	139	131	126	116	104	89
WSCL1-27	1.5		161	157	155	150	141	136	125	112	95
WSCL1-30	1.5		178	175	171	166	157	150	139	124	106
WSCL1-33	2.2		196	192	188	183	173	165	154	137	118
WSCL1-36	2.2		214	210	205	200	190	181	169	151	130
