| Quantity: | |
|---|---|
| Model NO. | PEDJ | Max.Head | >150m |
| Max.Capacity | >400 L/min | Driving Type | Motor |
| Impeller Number | Single-Stage Pump | Working Pressure | High Pressure Pump |
| Influent Type of Impeller | Single Suction Pump | Position of Pump Shaft | Horizontal Pump |
| Pump Casing Combined | Horizontal End Suction Pumps | Mounting Height | Suction Centrifugal |
| Impeller | Closed | Material | Cast Iron |
| Structure | Single-Stage Pump | Assembly | Booster Pump |
| Theory | Centrifugal Pump | Power | Electric, Diesel Engine |
| Start up | Electric Pump, Engine Pump, Control Panel | Type | Fire Pump |
| Application | Fire Fighting | Industry | Fire Pump |
| Media | Fresh Water, Sea Water, Waste Water.etc | Model No | Edj |
| Horsepower | 5.5-220HP | Voltage | 220V/380V |
| Transport Package | Standard Export Wooden Box | Trademark | Wosen |
| Origin | Zhejiang, China | HS Code | 8413709990 |

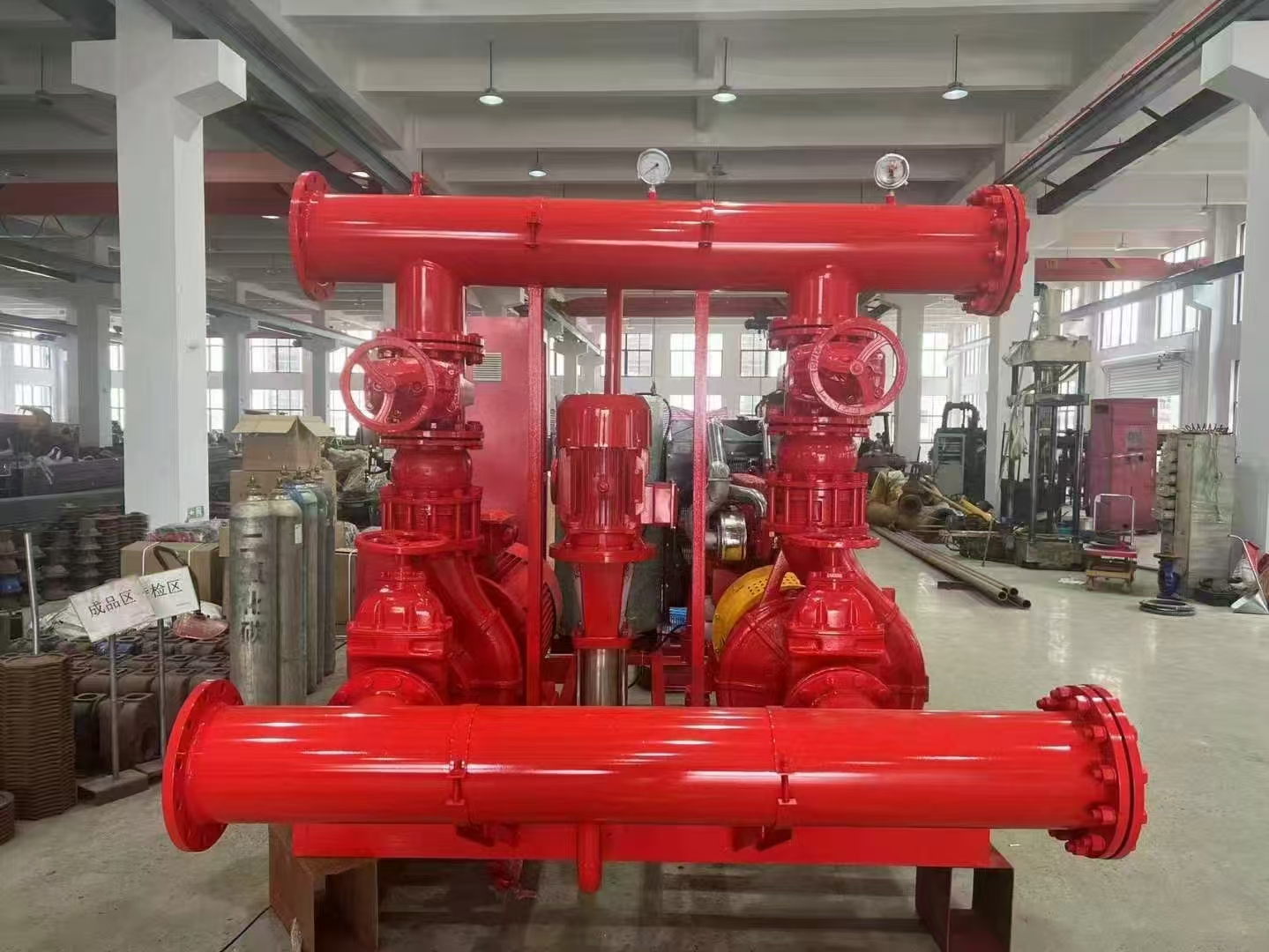

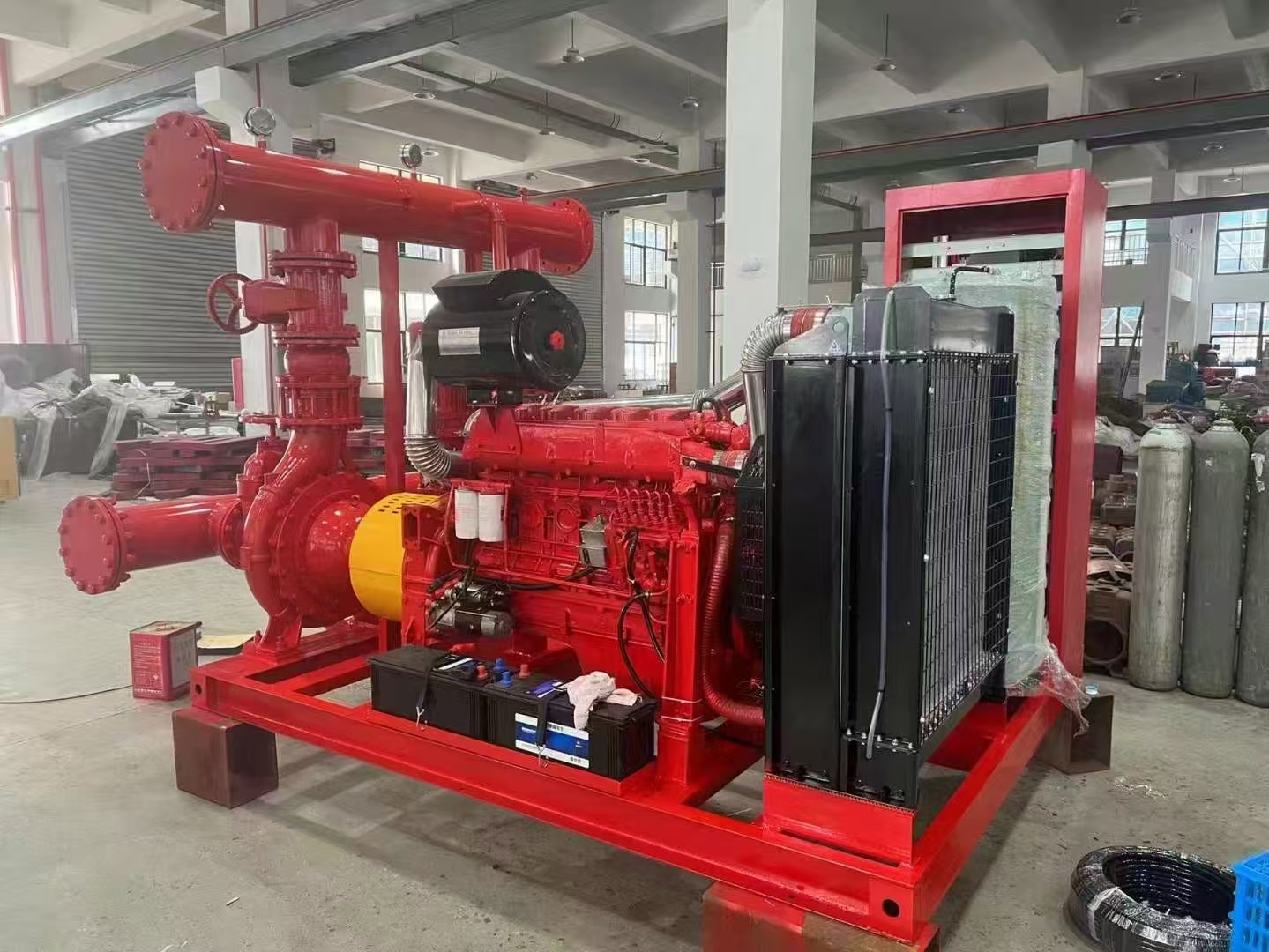

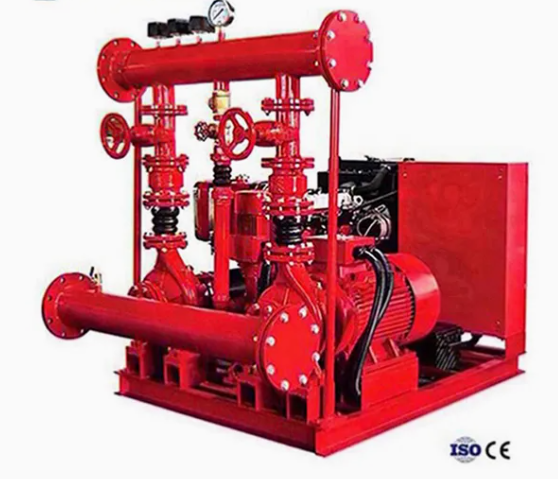

EDJ Fire pump set consists of a main electric pump(driven by an electric motor), a standby diesel pump
(driven by a diesel engine), and a multistage jockey pump. Pumps are assembled with the discharge pipe
and suction pipe as well as Control Panel. And this fire pump system can be customized for different
purposes such as high-rise buildings, warehouses, facilities, hospitals, supermarkets, shopping malls,
villas, apartments, etc.
The main pump can be an end suction pump, multistage pump, split case pump, or vertical turbine pump
with stainless steel, cast iron, and bronze material in standard configurations.
Every package is mounted on a steel fabricated base with a motor, engine, and pump coupled and wired to
the controller. The automatic air relief valve, gate valves, check valves, flexible joints, pressure switches,
and pressure gauges are mounted on their respective pipes. If required, additional piping, pressure tank,
valves, and sensing lines are available as well.
Fire Pumps Series Controllers are pre-wired, tested before delivery, and made ready for immediate usage.
Our Service
1. Warranty: One year guarantee of the whole machine except for wear parts;
2. Delivery: Delivery time will be on time as per the contract. Usually,our company need 25 working days for diesel water pump
and for bare shaft pump, it takes 20 working days,
3. On-sales Service: we will clearly show you everything in fact when you place an order with us.
We will take photos or videos to show you our production situation,
And update the production situation to you.
4. Quality: we will test our pump before delivery, and we will follow up on the pump working conditions
per three months when the pump is put into use. we have free spare parts.
CERTIFICATE
The company has passed lS09001 qualitysystem certification, national 3Ccertification, European CE certification, and safety production standardization.
