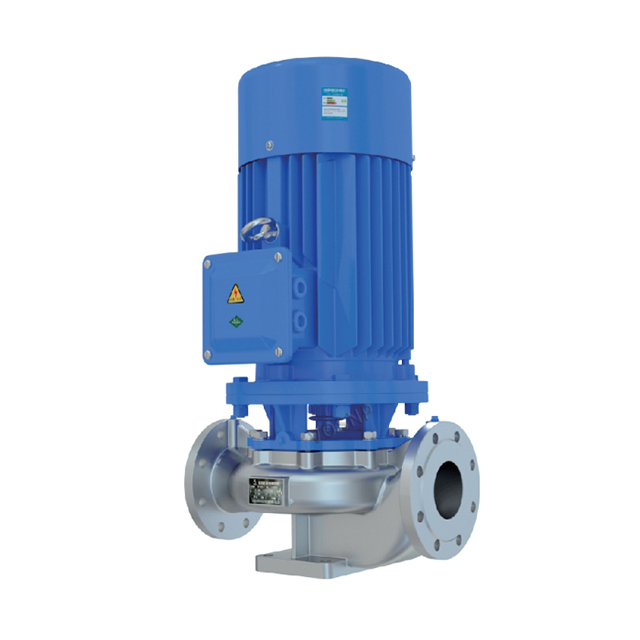

IHG Stainless Steel Vertical Single-stage Pipeline Centrifugal Pump

Model:
IHG
Brand:
Wosen

Quantity:
Availability:





Inquire Add to Basket

Parameter Description

Product Details

Flow Range

3~600m³/h

Range Of Head

5~150m

Power

0.75~160kw

Rated Speed

2960r/min

1480r/min

980r/min

Product Introduction

The IHG vertical pipeline centrifugal pump adopts the performance parameters of the IH type centrifugal pump and is ingeniously designed on the basis of a general vertical pump. At the same time, suitable hot water, high temperature, and corrosive chemical pumps and oil pumps are dispatched based on the IHG type according to different operating temperatures, media, etc. It has the advantages of high efficiency, energy saving, low noise, and reliable performance.

Product Features

The pump is of vertical structure, with the same inlet and outlet diameters and located on the same centerline, and can be installed in the pipeline like a valve.
The impeller is directly installed on the extension shaft of the motor, with short axial dimension, compact and beautiful structure, small floor area, low building investment, and can be placed outdoors with protective cover.
Reasonable arrangement of pump and motor bearing can effectively balance the radial and axial load generated by pump operation, so as to ensure stable pump operation, small vibration and low noise.
The shaft seal adopts mechanical seal or mechanical seal combination, adopting imported titanium alloy seal ring, medium high temperature resistant mechanical seal and hard alloy material, wear-resistant seal, which can effectively extend the service life.
It is convenient for installation and maintenance without dismantling the pipe road system. All rotor parts can be pulled out by dismantling the nuts of the pump coupling seat.
The pump can be installed vertically and horizontally according to the requirements of pipeline layout, and the pump can be operated in series or in parallel according to the requirements of use, i.e. flow and lift.

Application Field

IHG vertical pipeline centrifugal pump is used for conveying liquids that do not contain solid particles, are corrosive, and have a viscosity similar to water. It is suitable for industries such as petroleum, chemical, power, papermaking, food and pharmaceuticals, and synthetic fibers, with a temperature range of -20 ℃ to+120 ℃.

Performance Parameter

Number	Model	Rate of Flow		Lift (m)	Efficiency (%)	Speed (r/min)	Power (kW)	NPSH Required (NPSH)r	Weight (kg)
Number	Model	(m³/h)	(L/s)	Lift (m)	Efficiency (%)	Speed (r/min)	Power (kW)	NPSH Required (NPSH)r	Weight (kg)
1	20-110	1.8	0.5	16	25	2800	0.37	2.3	25
		2.5	0.69	15	34	2800	0.37	2.3
		3.3	0.91	13.5	35	2800	0.37	2.3
2	20-160	1.8	0.5	33	19	2900	0.75	2.3	29
		2.5	0.69	32	25	2900	0.75	2.3
		3.3	0.91	30	23	2900	0.75	2.3
3	25-110	2.8	0.78	16	34	2900	0.55	2.3	26
		4	1.11	15	42	2900	0.55	2.3
		5.2	1.44	13.5	41	2900	0.55	2.3
4	25-125	2.8	0.78	20.6	28	2900	0.75	2.3	28
		4	1.11	20	36	2900	0.75	2.3
		5.2	1.44	18	35	2900	0.75	2.3
5	25-125A	2.5	0.69	17	35	2900	0.55	2.3	27
		3.6	1	16	35	2900	0.55	2.3
		4.6	1.28	14.4	35	2900	0.55	2.3
6	25-160	2.8	0.78	33	24	2900	1.5	2.3	39
		4	1.11	32	24	2900	1.5	2.3
		5.2	1.44	30	24	2900	1.5	2.3
7	25-160A	2.6	0.12	29	31	2900	1.1	2.3	34
		3.7	1.03	28	31	2900	1.1	2.3
		4.9	1.36	26	31	2900	1.1	2.3
8	32-100	4.5	12.5	12.5	44	2900	0.55	2	27
9	32-100(I)	4.4	1.22	13.2	48	2900	0.75	2	32
		6.3	1.75	12.5	54	2900	0.75	2
		8.3	2.32	11.3	53	2900	0.75	2
