Product Introduction
XBC diesel engine fire pump set has high efficiency, long service life and high reliability (without starting seizure failure after long-time shutdown), and it is a product suitable for building fire fighting and spraying facilities. The product performance meets the performance requirements and test methods of Fire Pump (GB6245-2006). After being tested by the National Fire Equipment Quality Supervision and Testing Center, all performance indicators meet the standard requirements and the product is granted with the fire product approval certificate. The product can be used for conveying clean water without solid particles below 80 ℃ or liquid with physical and chemical properties similar to water.

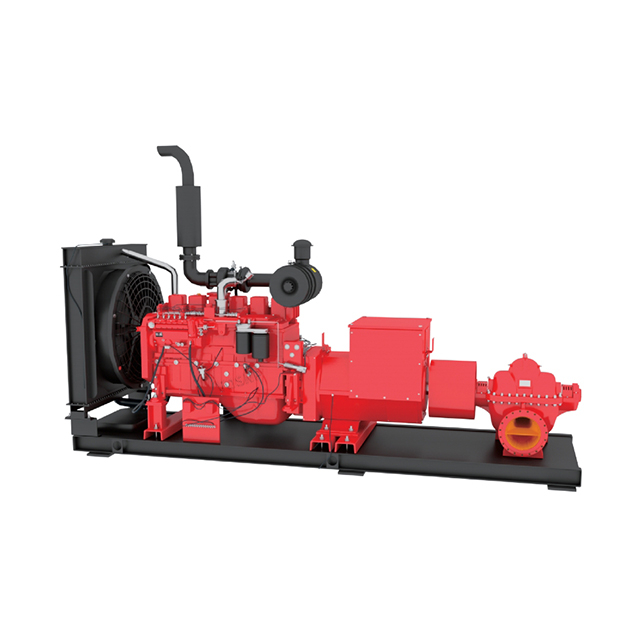

XBC diesel engine fire pump and electrical instruments are installed together in a complete set, with complete functions, high degree of automation, compact structure, automatic fault alarm and receiving start signal, completing start procedures and quickly putting into full-load operation. The unit can be equipped with vibration damper, rubber flexible joint and corrugated pipe muffler according to the requirements. Alarm devices shall be provided in case of insufficient fuel, low battery voltage, high lubricating oil temperature, overspeed, etc. to ensure the diesel engine starts at low temperature. The whole system is safe, reliable and easy to use.
Product Features
The electric pump is the main fire pump, which can be started automatically according to the fire fighting situation;
A stabilized pressure pump shall be provided for constant pipe network pressure;
The diesel engine pump is the standby fire pump, which can be started automatically in case of no power supply;
The diesel engine pump starts when the electric pump fails.
Application Field
Under the premise of meeting the fire fighting conditions, the working conditions of domestic and production water supply shall be taken into consideration. The product can not only be used for independent fire water supply system, but also for fire fighting and domestic water supply system, but also for building, municipal, industrial and mining, water supply and drainage, ship, field operation and other occasions.
Performance Parameter
| Model | Flow | Rated Pressure | Speed | Shaft Power |
| Q | P | n | Pe | |
| L/S | Mpa | r/min | kw | |
| XBC2.8/10-80w | 10 | 0.28 | 2000 | 5.60 |
| XBC3.2/10-100w | 10 | 0.32 | 1450 | 5.76 |
| XBC4.0/15-100w | 15 | 0.40 | 2000 | 10.20 |
| XBC5.0/15-100w | 15 | 0.50 | 2000 | 11.60 |
| XBC4.0/20-100w | 20 | 0.40 | 2000 | 13.30 |
| XBC5.0/20-100w | 20 | 0.50 | 2900 | 16.01 |
| XBC6.0/20-100w | 20 | 0.60 | 2900 | 18.56 |
| XBC8.0/20-100w | 20 | 0.80 | 2900 | 21.30 |
| XBC5.0/25-100w | 25 | 0.50 | 2900 | 17.6 |
| XBC8.0/25-100w | 25 | 0.80 | 2900 | 27.2 |
| XBC10.0/25-100w | 25 | 1.00 | 2900 | 39.0 |
| XBC4.0/30-100w | 30 | 0.40 | 2200 | 14.6 |
| XBC5.0/30-100w | 30 | 0.50 | 2900 | 19.9 |
| XBC6.0/30-100w | 30 | 0.60 | 2900 | 24.6 |
| XBC7.0/30-100w | 30 | 0.70 | 2900 | 28.83 |
